Audio Technica ATW902A VHF Wireless Handheld Microphone System
Audio Technica ATW902A VHF Wireless Handheld Microphone System
SKU:ATW902A
11 in stock
Couldn't load pickup availability
Shipping & Condition
Shipping & Condition
Orders are typically prepared for shipment six days a week. Our goal is to ship orders the same day, if the order is placed before 1 PM CST on a weekday. Due to the value of many of our products, a Delivery Signature is typically required.
Most products on our website are new. We also occasionally sell demo or blemished products. These items will be labeled accordingly on our website. For definitions of the different products conditions please click here.
If this is a gift for someone special, please keep in mind that most items arrive in packaging that reveals what's inside.

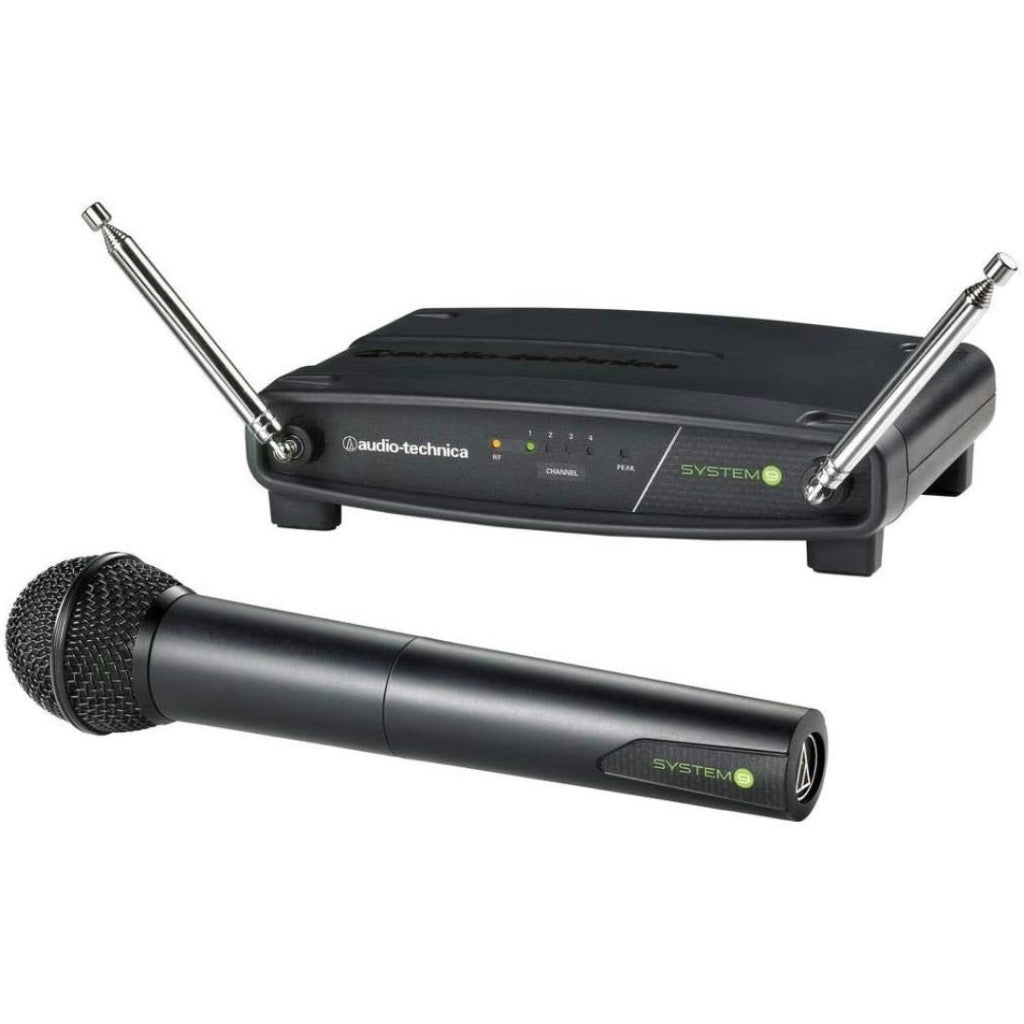

The Audio-Technica ATW902A Wireless Microphone is a four-channel frequency-agile wireless handheld microphone system designed to provide rock-solid performance, easy setup, and clear, natural sound quality.
The ATW902A wireless mic system features sleek, stackable, and contemporary styling and boasts handheld wireless, headworn wireless, guitar, and lavalier wireless body-pack configurations. This AT wireless cordless mic set offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz)
Each Audio-Technica System 9 configuration includes the ATW-R900a receiver and either a body-pack transmitter or handheld microphone/transmitter. It's a non-diversity, single-channel receiver with an advanced dipole antenna design for an extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a also offers volume control along with AF Peak, RF, and Power indicator lights.
This ATW902A Audio-Technica wireless microphone system is affordable, professional, and reliable. It's sure to provide you with years of dependable performance. Contact Andy's and order yours today.
ATW902A Audio Technica Wireless Handheld Microphone System Specs
| Overall System | |
|---|---|
| Operating Frequencies | VHF highband, 169 MHz to 172 MHz |
| Modulation Mode | FM |
| Maximum Deviation | +/-10 kHz |
| Frequency Response | 80 Hz to 13 kHz |
| Operating Range | 200' (60 m) typical Open range environment with no interfering signals |
| Total Harmonic Distortion | <1% (at 1 kHz, +/-10 kHz deviation) |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) Battery performance may be reduced at very low temperatures |

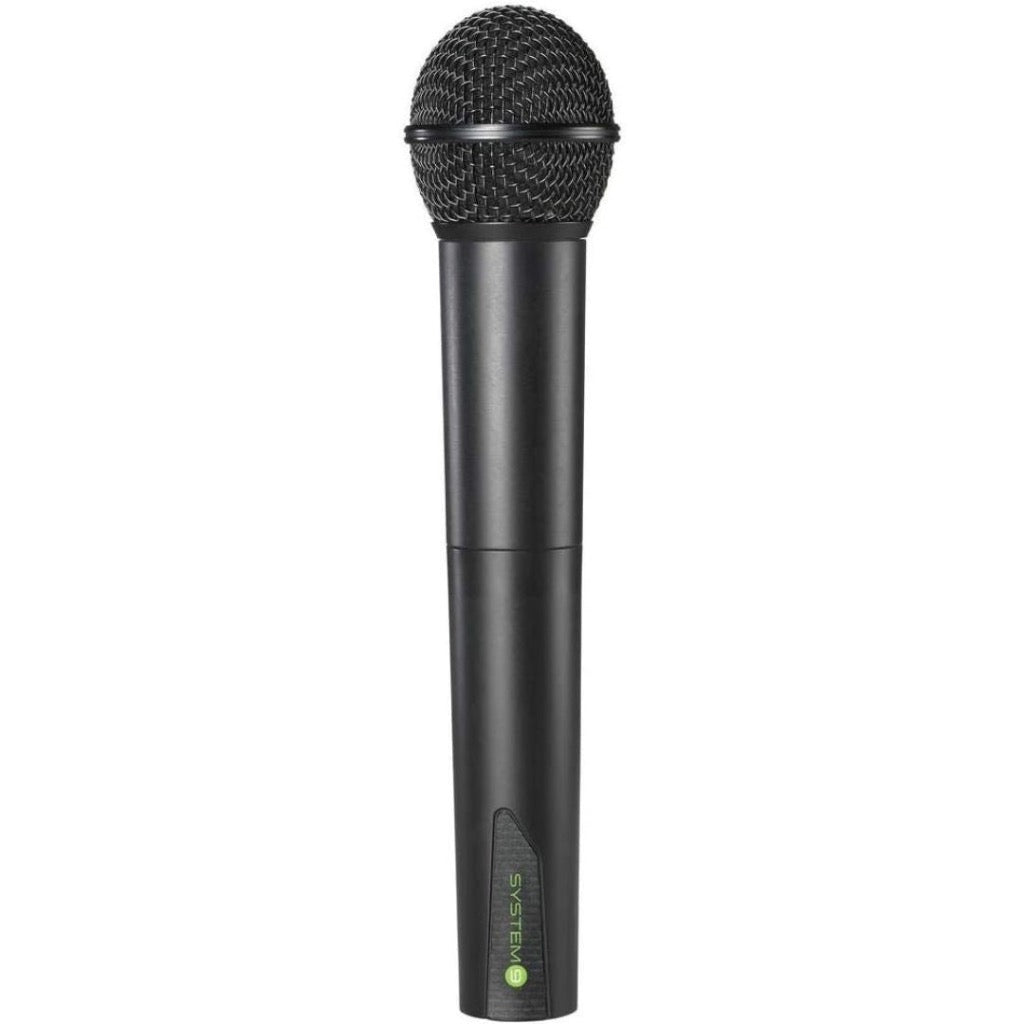

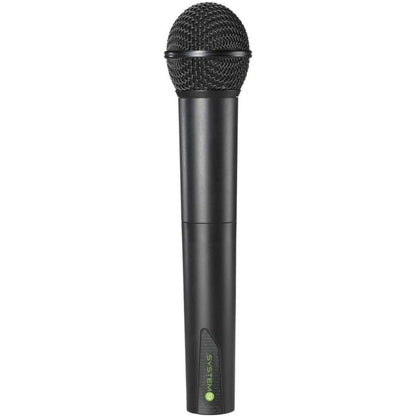

| Handheld Transmitter | |
|---|---|
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA not included |
| Battery Life | 8 hours (alkaline) Depending on battery type and use pattern |
| Dimensions | 9.91" (251.8 mm) long, 2.11" (53.5 mm) diameter |
| Net Weight | 9.2 oz (260 grams) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| Body Pack | |
|---|---|
| RF Power Output | 10 mW |
| Battery Life | 8 hours (alkaline) Depending on battery type and use pattern |
| Battery Type | Two 1.5V AA not included |
| Dimensions | 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D |
| Input Connections | Four-pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +9V |
| Net Weight | 2.8 oz (80.0 grams) without batteries |
| Spurious Emissions | Following federal and national regulations |

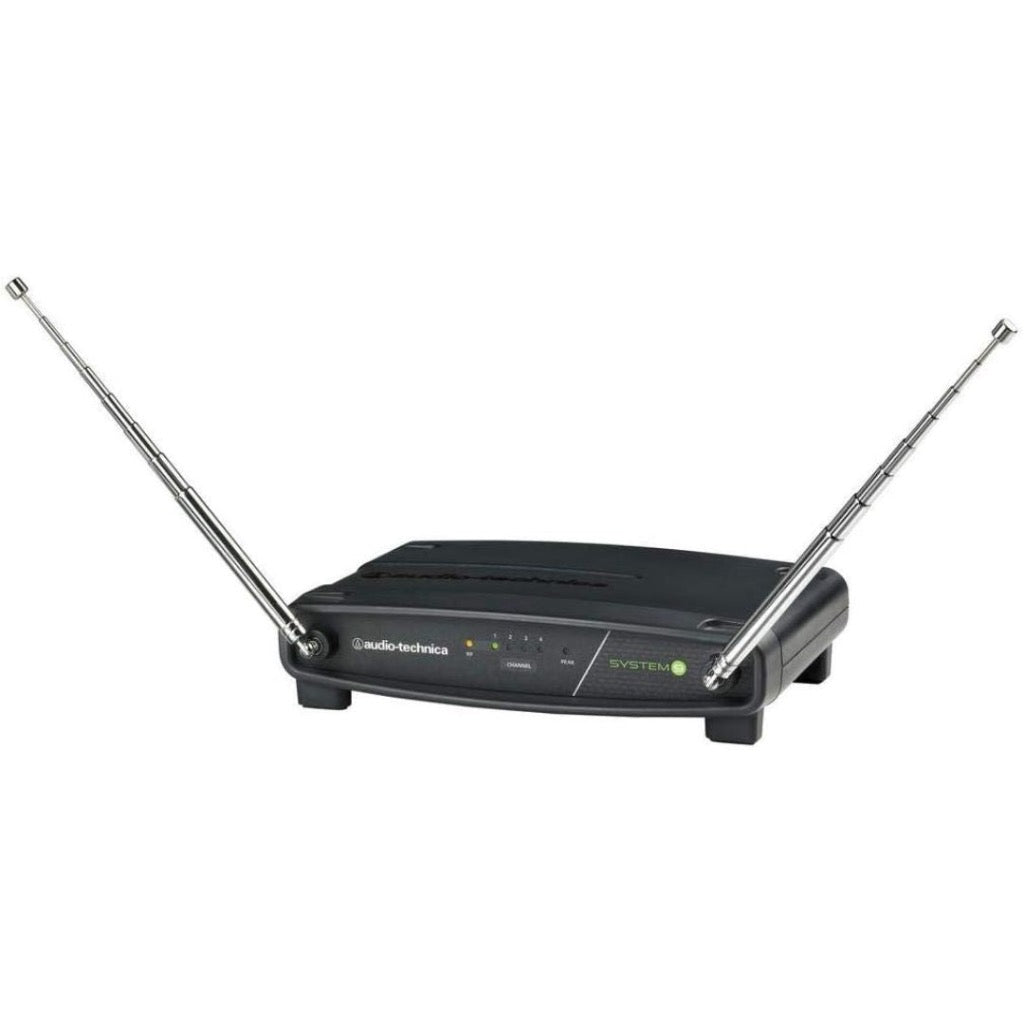

| Receiver | |
|---|---|
| Receiving System | Non-diversity, single-channel, dual antenna system |
| Image Rejection | 50 dB minimum |
| RF Sensitivity | 20 dBuV at 60 dB S/N ratio (50 ohms termination) |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D |
| Weight | 12.0 oz (337 grams) |
| Accessories Included | Power supply |
| Audio Output | Nominal Output Level XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) |
