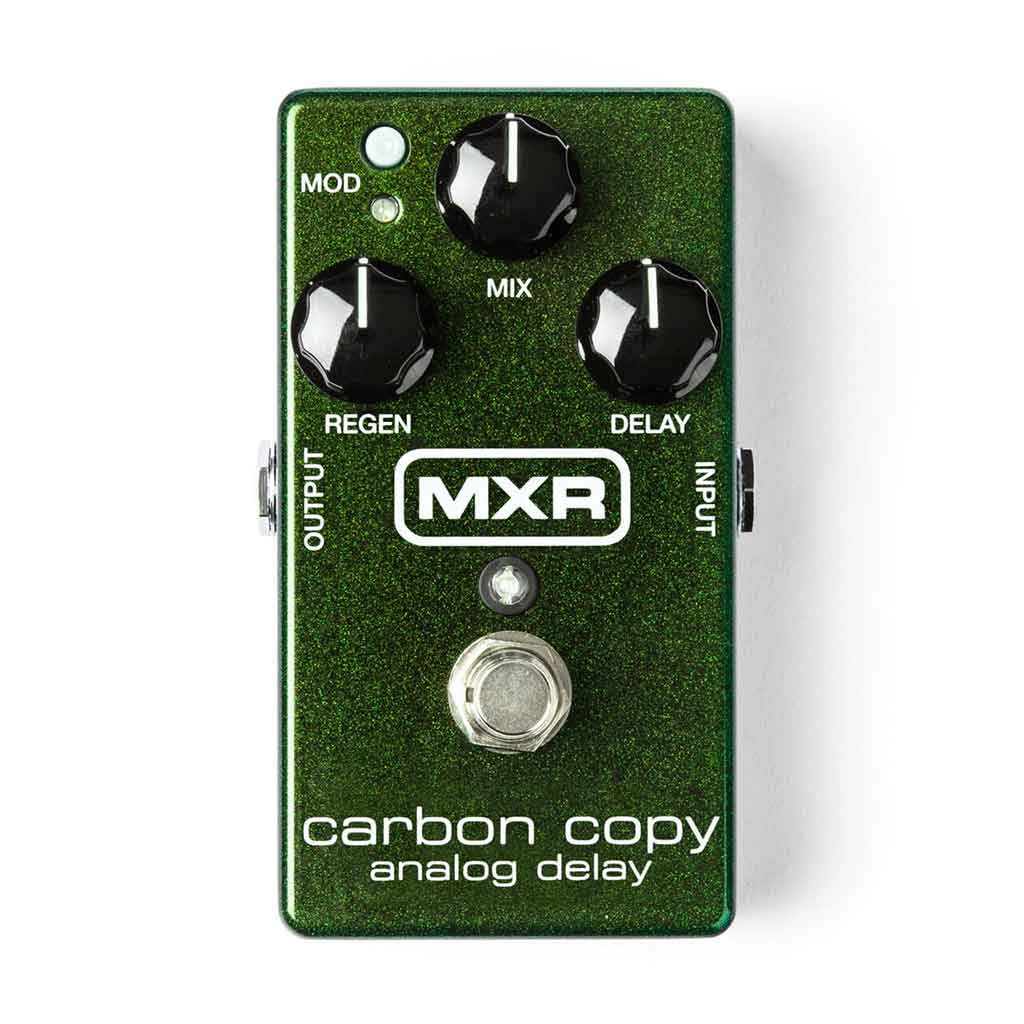

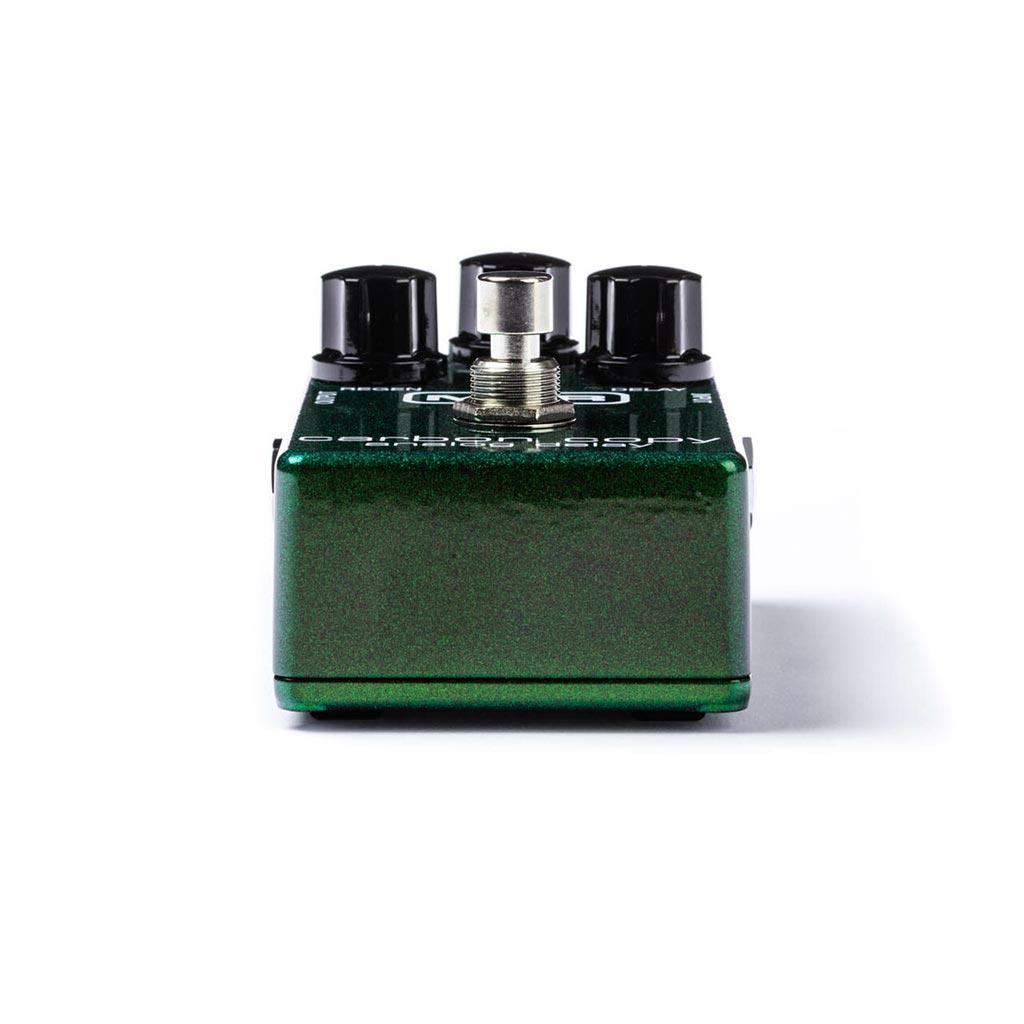

MXR Carbon Copy Analog Delay Pedal M169

MXR Carbon Copy Analog Delay Pedal M169


Regular price $149.99
Regular price $0.00 Sale price $149.99
Sale Sold out

Low stock: 1 left

Shipping & Condition

Orders are typically prepared for shipment six days a week. Our goal is to ship orders the same day, if the order is placed before 1 PM CST on a weekday. Due to the value of many of our products, a Delivery Signature is typically required.

Most products on our website are new. We also occasionally sell demo or blemished products. These items will be labeled accordingly on our website. For definitions of the different products conditions please click here.

If this is a gift for someone special, please keep in mind that most items arrive in packaging that reveals what's inside.


The MXR Carbon Copy Analog Delay pedal boasts old-school analog warmth with up to 600ms of delay time and modulation. With this MXR analog delay pedal, you can create all those classic slap-back echo effects from bygone years.

In addition to echo (delay), the Carbon Copy Delay pedal provides a modulation section. Just push the Mod switch and adjust the internal Speed and Depth controls to add everything from tape echo warble to shimmery, liquefied chorusing to your repeats. Finally, adjust the parameters of your delay signal with the Regen, Mix, and Delay controls.

The three-knob layout control allows you to change the Delay, Mix, and Regeneration. Additionally, there are two internal trim pots that offer user-adjustable width and rate control of the modulation for even more tonal options. All are processed in an analog audio path for authentic analog delay, made possible only by old-school MXR analog bucket brigade technology.

What does "true bypass" mean? When a true bypass pedal is in bypass mode, the signal will go directly from the pedal’s input to its output without passing through the pedal’s effect circuitry or connecting to any other circuitry within the pedal. This means it will not change the original sound (audio) of your instrument.

The MXR Carbon Copy Analog Delay pedal is a go-to standard for musicians who want a well-rounded, easy-to-use delay pedal that sounds great. In just a short time, it has become a rock ‘n’ roll staple. Contact Andy's Music and order yours today.

Andys' Music, a 10X winner of the prestigious NAMM TOP 100 Dealer Award, is a family business with family values serving musicians, schools, and houses of worship in the Southeast U.S. Keeping the gift of music alive since 1977.

MXR Carbon Copy Analog Delay
  • 100% analog bucket-brigade technology
  • Up to 600ms of delay with switchable modulation
  • Internally adjustable modulation circuit
  • True bypass
  • Delay Time 20 ms to 600 ms
  • Noise Reduction 2:1 ratio
  • Modulation Speed 0.2 Hz to 2.2 Hz
  • Requires optional power supply or 9-volt battery
  • MOD switch toggles modulation on/off
  • The MIX knob controls the blend of wet and dry signals
  • REGEN knob sets the number of repeats
  • DELAY knob sets the delay time
  • FOOTSWITCH toggles effect on/bypass
