MXR Six Band EQ Pedal
MXR Six Band EQ Pedal
SKU:M109S
Low stock: 1 left
Couldn't load pickup availability
Shipping & Condition
Shipping & Condition
Orders are typically prepared for shipment six days a week. Our goal is to ship orders the same day, if the order is placed before 1 PM CST on a weekday. Due to the value of many of our products, a Delivery Signature is typically required.
Most products on our website are new. We also occasionally sell demo or blemished products. These items will be labeled accordingly on our website. For definitions of the different products conditions please click here.
If this is a gift for someone special, please keep in mind that most items arrive in packaging that reveals what's inside.

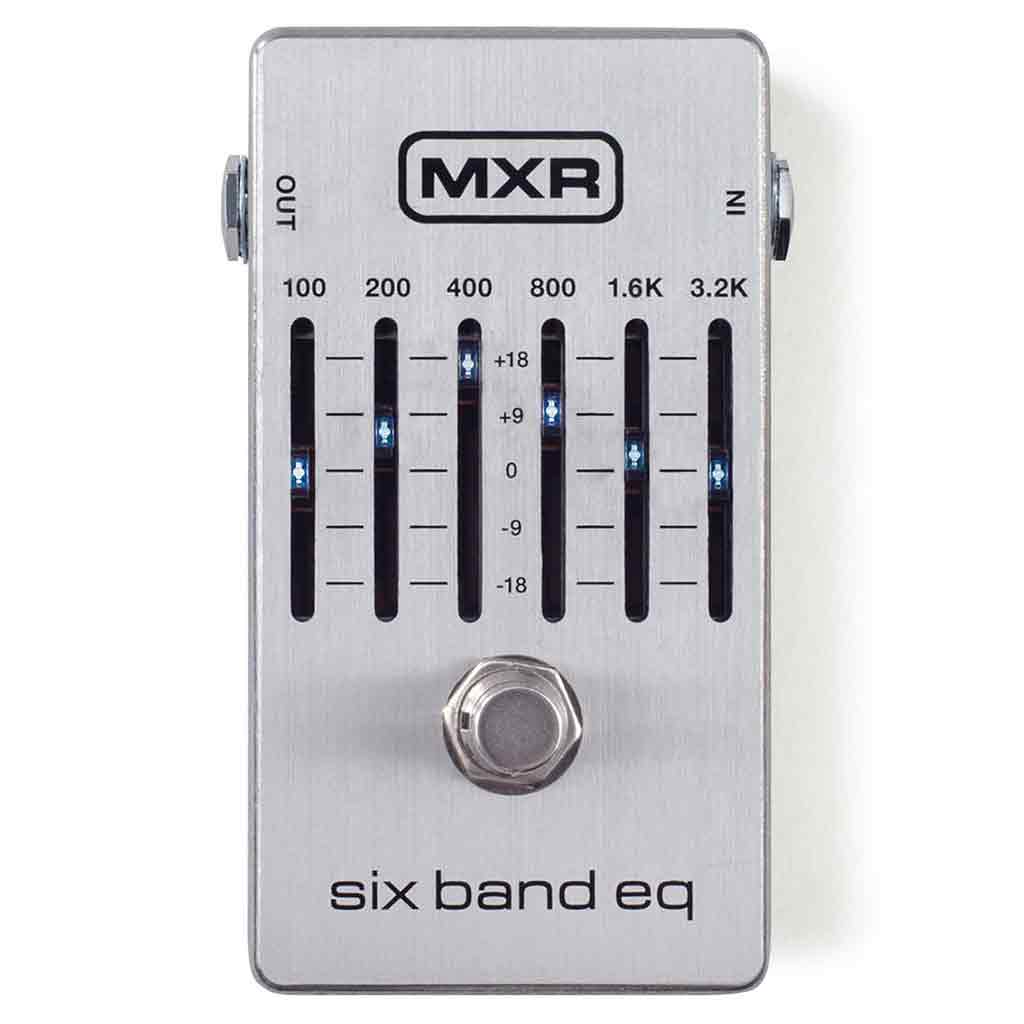

The MXR Six Band EQ pedal is not your father's 1970s guitar equalizer! It's been upgraded with noise-reduction circuitry, true bypass switching, brighter LEDs for increased visibility, and lightweight aluminum housing.
The MXR guitar equalizer is a versatile tone-shaping pedal and covers all the necessary guitar frequencies. Each slider provides +/-18dB of boost or cut for precise control over your sound.
The Six-Band EQ (equalizer) can create scooped-mid rhythm tones with massive low end, add natural-sounding warmth to a quacky acoustic pickup, eliminate onstage feed-back, and much more. You can also use this 6-band equalizer in the effects loop of your amp for a huge, sculptable lead boost.
All venues are not the same, concerning sound projection. The MXR 6 Band EQ pedal can assist you in adjusting the tone - tone shaping - of your instrument. If you need clarity, lightly boost high frequencies. Conversely, if you need fullness or low end, boost the low frequencies. Always use common sense when boosting frequencies, and only adjust in small increments.
The MXR guitar equalizer pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).
The MXR 6 Band EQ gives you huge amounts of tone shaping and level control in a road-worthy housing. Contact Andy's and order yours today.
MXR Six Band EQ Specs
- Manf. model # M109S
- EQ slider cuts or boosts associated frequencies
- FOOTSWITCH toggles effect on/bypass (blue slider LEDs indicate on)
- Input Impedance 470 kΩ
- Output Impedance 5 kΩ
- Max Input Level all sliders at 0 dB +14 dBV at 1 kHz
- Max Output Level all sliders at 0 dB +14 dBV at 1 kHz
- Frequency Response ±1 dB,20 Hz to 20 kHz
- Noise Floor* -101.7dBv
- Filtering ±18db at: 100,200, 400, 800, 1.6K, 3.2K ±18dB shelf at 16kHz
- True hardwire bypass
- Current Draw 14.5 mA
