MXR Tom Morello Power 50 Overdrive Pedal

The MXR Tom Morello Power 50 Overdrive pedal faithfully recreates one of the most iconic guitar tones of the modern rock era. Tom used a half stack to hone that sound, and now, you can put it right on your pedalboard.

The circuitry of the Power 50 Overdrive uses MOSFET technology to recreate the preamp stages of Tom’s amplifier for amp-like performance that’s uncanny in its ability to reproduce those big, gnarly tones. Tom relies solely on his amplifier for his signature distortion tones, and when you step on the Power 50 Overdrive, you’ll understand why.

The Power 50 Overdrive is fitted with the same control interface as Tom’s amp, featuring Gain, Bass, Middle, Treble, Volume, and Presence knobs so that you can replicate his exact settings or tune the sound to your taste.

If you have the Cry Baby Tom Morello Wah, this is where you can nail Tom’s wah tone. Slip it into the harmonically rich loop, and start riding that rocker pedal to recreate his aggressive yet tonally balanced voice-like sweeps. Running the Cry Baby Wah before the Power 50 Overdrive will produce an overall more subtle wah effect, while running it after the Power 50 Overdrive will give you a very pronounced high-end response when you hit the toe-down position.

Tom runs all of his effects pedals through his amp’s FX loop, giving his signal chain a unique tonal twist. The Power 50 Overdrive recreates this same feature, too, so that you can give your signal chain that same character. Its own FX loop taps into the raw signal-clipping point before the Presence control and the custom tone-shaping at the output.

The FX loop is perfect for a live setup, too—if you keep the Power 50 Overdrive engaged for your “always on” sound and run your pedal chain through the loop, you don’t have to worry about tweaking levels for a bunch of different pedals every time you play a different bar or club. Just adjust the Power 50 Overdrive’s interface to accommodate venue acoustics.

For more than 30 years, the key component of Tom Morello’s raw, hard-hitting sonic voice has been his amp setup. The MXR Power 50 Overdrive captures the sound and functionality of that setup for use with any rig, whether you have a simple combo amp or a high-end custom stack.

“The Power 50 Overdrive emulates the amp setup that I’ve used since 1988,” he says. “I’ve made 21 studio albums, and that amp, that head, and that speaker, and that tone has been on 21 of them. It’s been my signature identifiable sound since Day One of my career. If you want to have the sound that has been on those records, you don’t need to find an amp and speaker cabinet from 1988. You can get that sound with the Power 50 Overdrive, no matter what your setup is.”

This TBM1 distortion pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).

Andy's Music, a 12X winner of the NAMM TOP 100 Dealer Award, is a family business with family values serving musicians, schools, and houses of worship in the Southeast U.S. Keeping the gift of music alive since 1977.

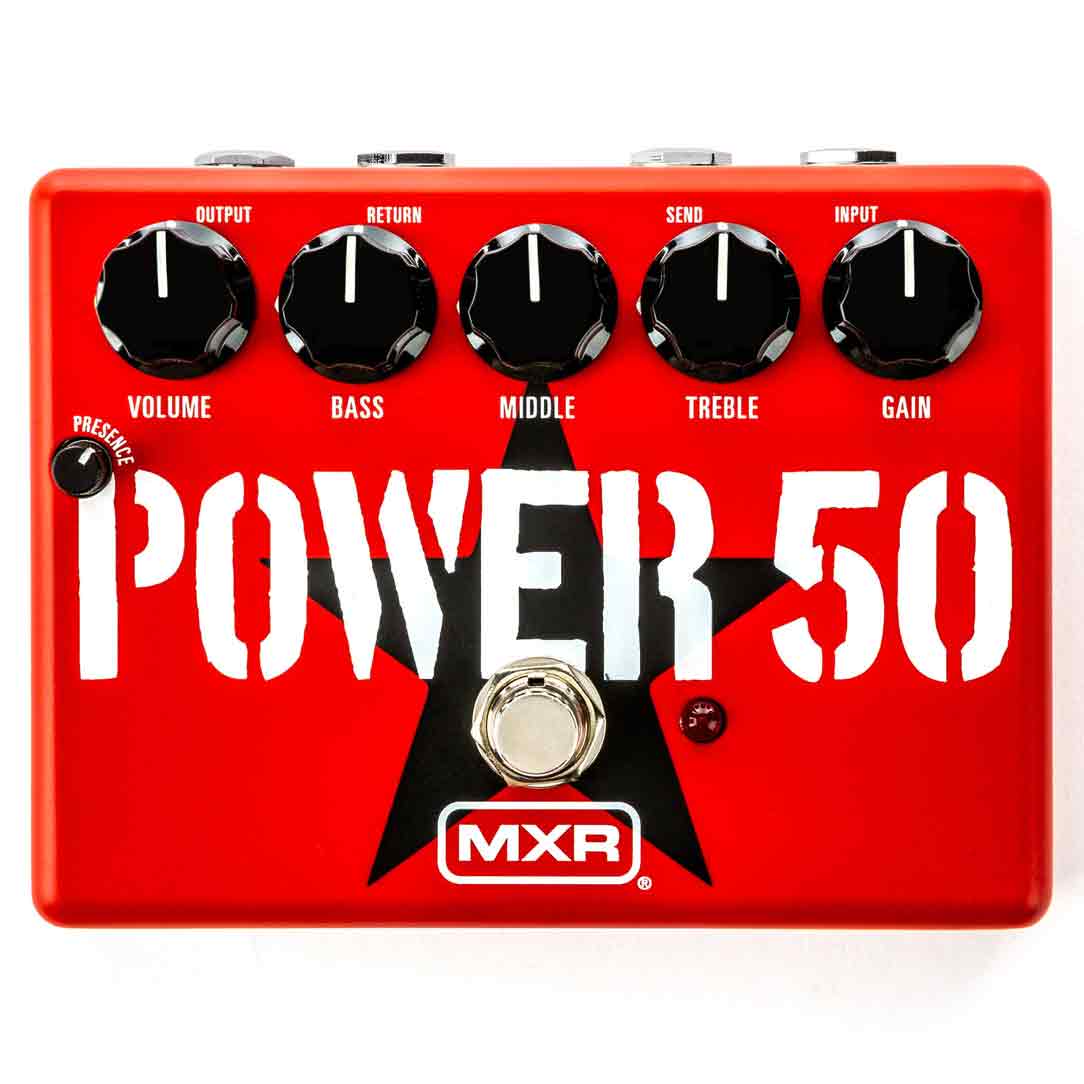

MXR Tom Morello Power 50 Overdrive Pedal Controls

• FOOTSWITCH toggles effect on/bypass (red LED indicates on)

• PRESENCE knob adjusts high-end frequencies of the overall output signal

• VOLUME knob controls the overall volume of the pre-effects loop signal

• BASS knob cuts/boosts low frequencies of pre-effects loop signal

• RETURN jack breaks the effects loop connection and receives the effects loop output signal

• MIDDLE knob cuts/boosts midrange frequencies of pre-effects loop signal

• SEND jack transmits post-EQ signal to the effects loop

• TREBLE knob cuts/boosts high frequencies of pre-effects loop signal

• GAIN knob sets overdrive intensity
• Manf. model # TBM1

SPECIFICATIONS:

• Input Impedance 700 KΩ

• Output Impedance 900 kΩ

• Return Impedance 1 MΩ

• Send Impedance 10 KΩ

• Nominal Output Level* -12 dBV

• Maximum Output Level 0 dBV

• Nominal Send Level* -26 dBV

• Bass +4 dB, -21 dB, 50 Hz

• Mid ±7 dB, 500 Hz

• Treble ±7 dB, 5 kHz

• Treble*** +7 dB, -21 dB, 5 kHz

• Presence +7 dB, 4 kHz

• Bypass True Hardwire

• Current Draw 12 mA

• Power Supply DC 9 volts
